Two dedicated machines handle the case itself — forming a flat blank into a squared case, and closing and sealing it once packed.
Robotic case erecting cell
AU-CE
Case Erector
Automatically forms and bottom-seals RSC cases.
Core Function
Convert flat RSC blanks into squared, bottom-sealed cases.
Key Features
AU-CE 12 magazine holds about 70–110 cartons
Pneumatic extraction and lower-flap closing
Tape sealing with squaring device
Operating Principle
Flat blanks are extracted from the magazine, opened and squared, lower flaps are folded, and tape or hot melt closes the base before packing.
Applications
RSC cases for food • beverage • pharma • home and personal care
AU-CE-12AU-CE-30
Why This System
✓Automates a repetitive manual task, freeing labor for higher-value work
✓Magazine capacity of 70-110 cartons reduces reload frequency
✓Squaring device keeps every case consistent for downstream packing
AU-CS

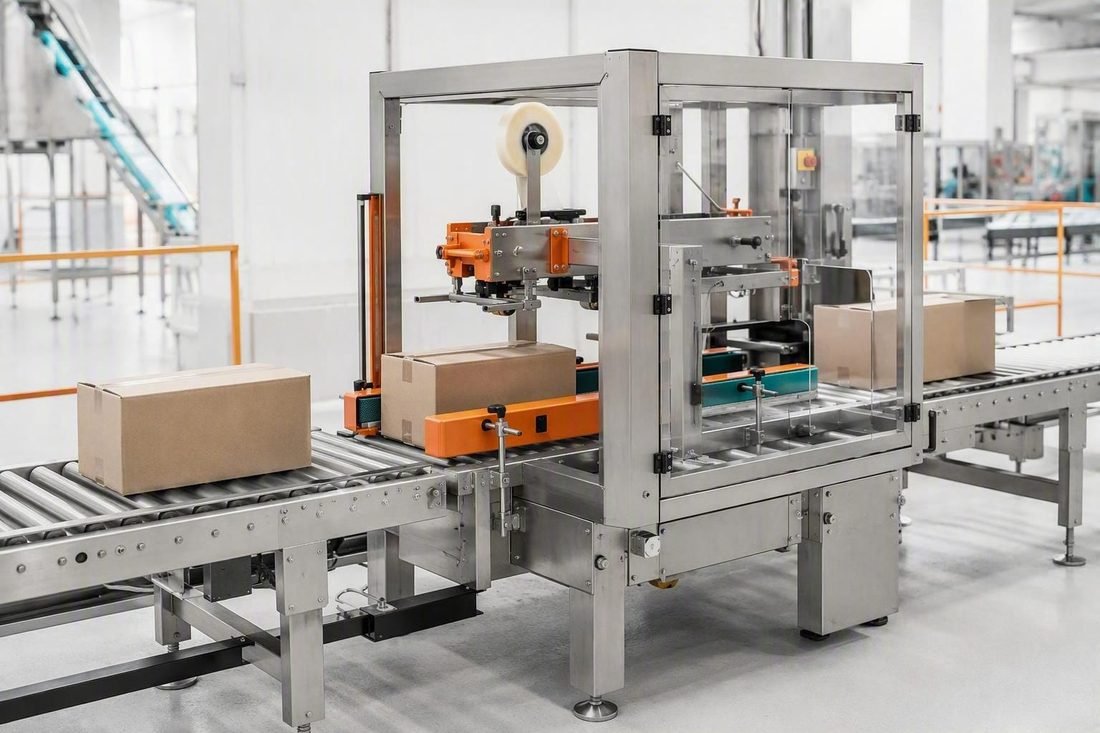

Case Sealer
Repeatable flap closing and final sealing for RSC cartons.
Select When — Repeatable closure across case sizes
Core Function
Deliver repeatable transport-ready seals with minimal manual work.
Key Features
AU-CS 25 supports up to 25 cases/min
Powered flap tucker and contoured outer-flap folders
Quick hand-crank changeover across a wide case range
Tape standard; hot-melt option available
Operating Principle
Powered flap folders close the inner and outer flaps, compression stabilizes the carton, and tape—or optional hot melt—creates the final transport seal.
